Genuine Sony WH-1000XM5 Headband Hinge Swivel Repair Part

16-Pin Connector Included – Choose Left or Right – Black, Blue, Silver, Pink

If your WH-1000XM5 ear cup is loose, cracked, or won’t hold position, the hinge swivel is typically the failure point. This listing includes the hinge and the required 16-pin connector needed to complete the repair.

🔧 Fixes These Common Problems:

Ear cup hanging loose
Headband broken at the swivel
Visible crack near hinge joint
Headphones won’t stay secure on head
Ear cup flopping or unstable
Swivel separated from headband

If the hinge is cracked, replacement is required to restore proper fit and stability.

📦 What’s Included:

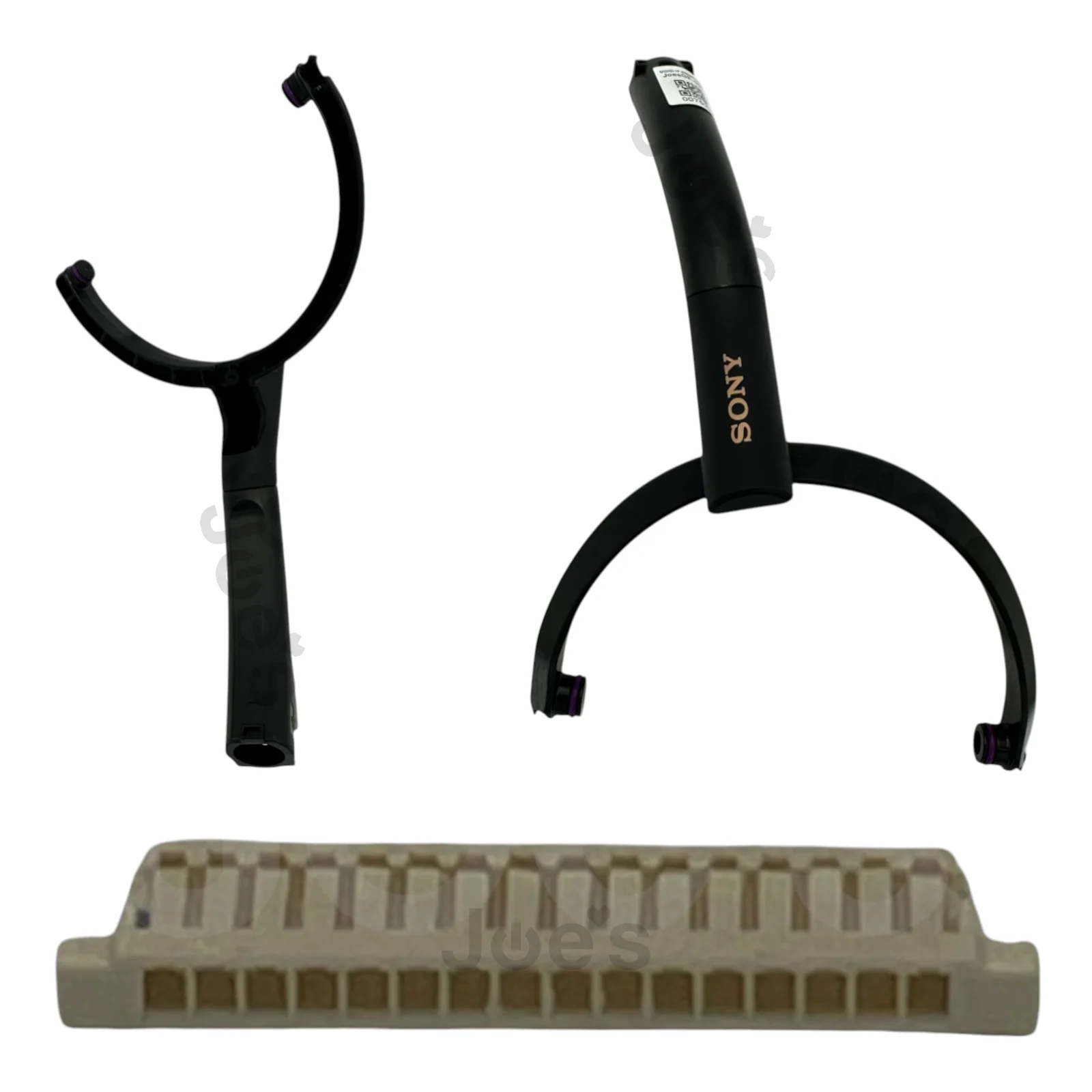

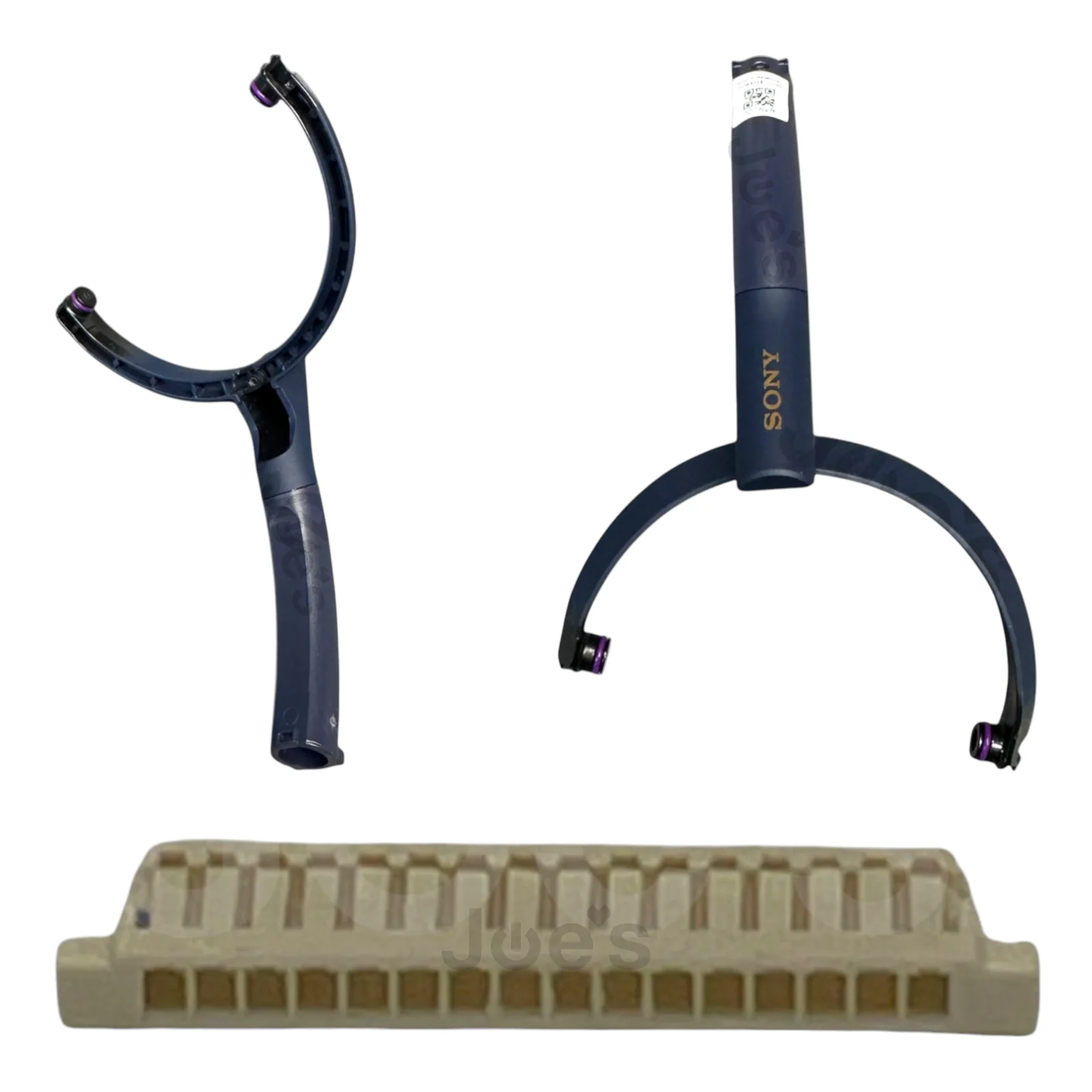

1 x Genuine Sony WH-1000XM5 Hinge Swivel (Select Left or Right)
1 x 16-Pin Connector (Included)

Color of your choice: Black, Blue, Silver, or Pink

The 16-pin connector is required to properly reconnect wiring after transferring the internal wires through the new hinge.

⚠️ Installation Notes (Important)

Internal wiring must be carefully rerouted through the hinge during installation.
The included 16-pin connector is used to reconnect the wires after hinge removal.
Avoid pinching wires during reassembly.

Common Mistake to Avoid:
Before removing the original 16-pin connector, take a clear photo of the wire layout. All 16 wires must be reinstalled in the exact same order and orientation.

Incorrect wire placement may result in:

No power
No sound
Partial functionality

Professional installation is recommended.

Repair Difficulty: Moderate
Estimated Time: 25–45 minutes

🎥 Step-By-Step Repair Videos

We provide full installation walkthroughs for both hinge sides.

Left Side Hinge Replacement Video

Right Side Hinge Replacement Video

📘 Full Written Repair Guide

Prefer detailed step-by-step instructions with images?

Read our complete Sony WH-1000XM5 repair guide here:

Compatibility:

✔ Sony WH-1000XM5 Only
✘ Not compatible with WH-1000XM3 or WH-1000XM4

Common Searches This Repair Solves:

Sony WH-1000XM5 broken hinge
WH1000XM5 ear cup loose
Sony XM5 swivel cracked
WH-1000XM5 headband broken
XM5 hinge 16-pin replacement
